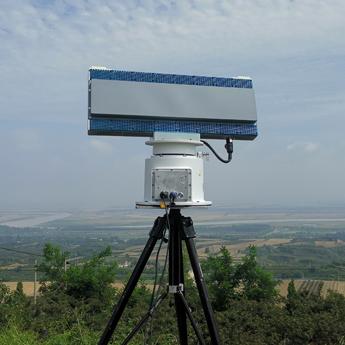

SR/ZKHC-8000SD Drone Defense SystemsProduct Overview：
A revolutionary D radar designed for low-altitude UAV detection, this system is built on S-band all-digital active phased array technology. Integrating AI processing and ultra-low-cost modular architecture, it redefines low-altitude security standards under the "software-defined radar" concept.
Application Features：
All-digital active phased array technology：Supports 128 channels of parallel operation, capable of generating 16 independent beams and independent digital transceiver channels at the same time, with phase control accuracy of less than 0.1°, beam switching speed ≤1ms, and beam sidelobe suppression ≤-35dB.
Intelligent algorithms： empower target recognition The AI multi-dimensional combination of target micro-motion features, motion trajectory, and environmental background fusion processing, and the use of deep neural network (DNN) to achieve a classification accuracy of ≥95% for drones, birds, and meteorologi-cal clutter. The detection probability of adaptive moving target detection (AMTD) for micro UAVs with RCS=0.01㎡ ≥90% (8km)

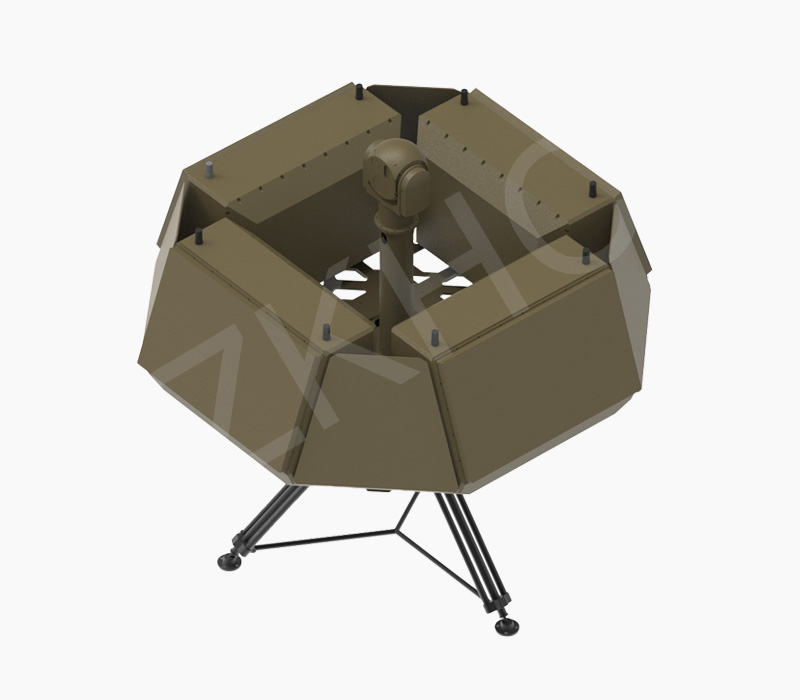

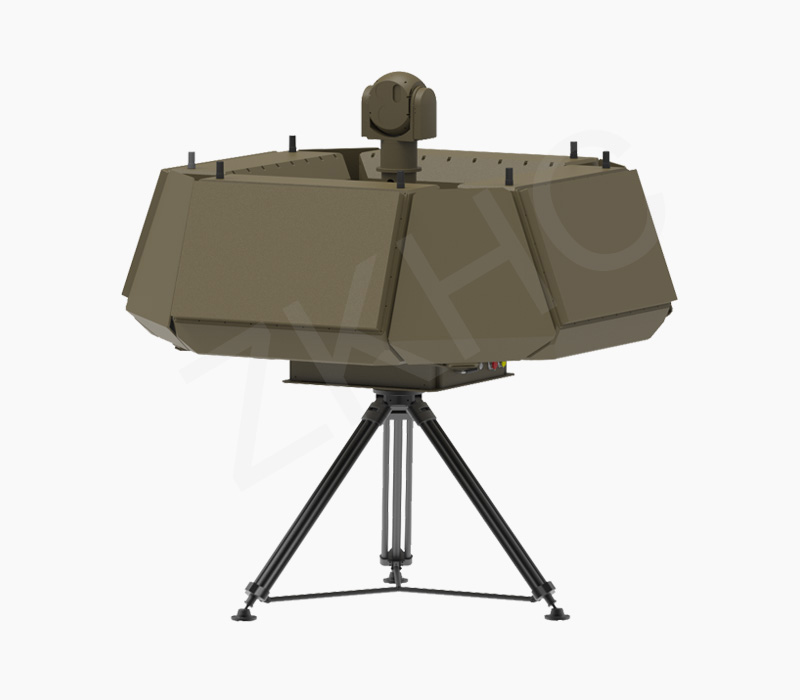

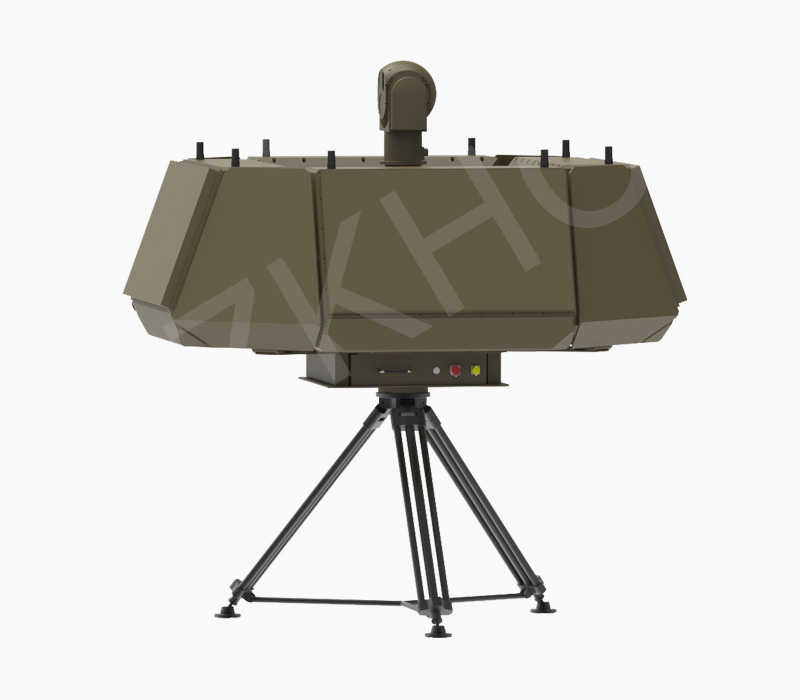

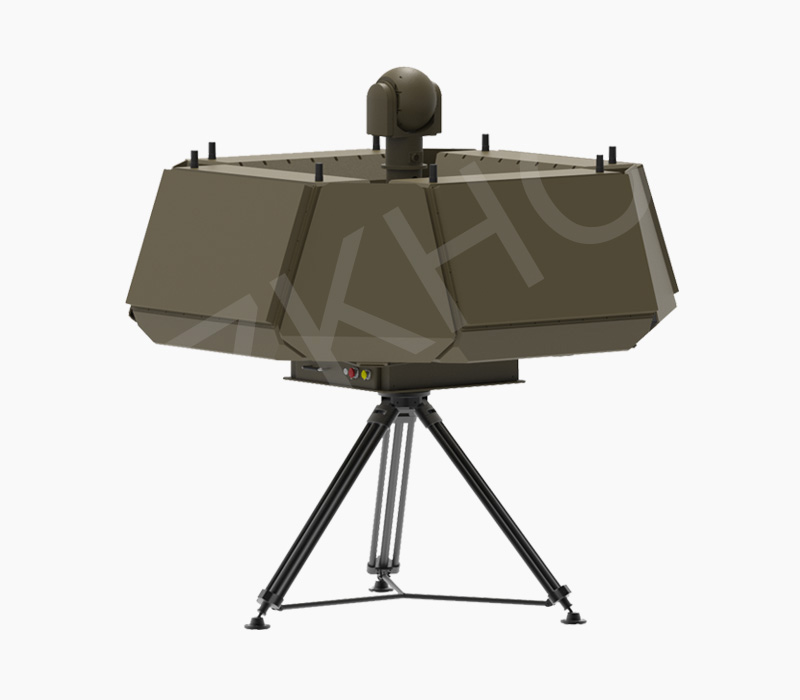

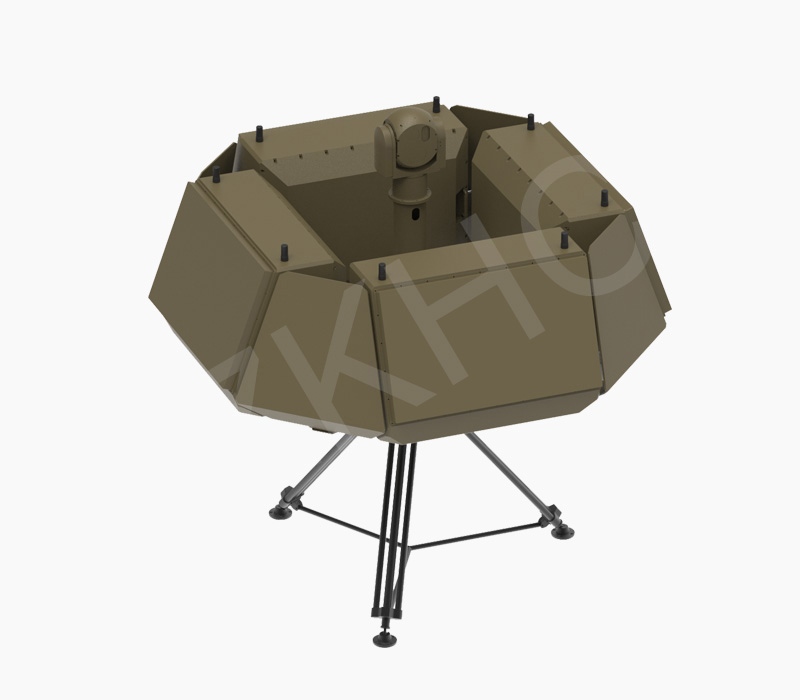

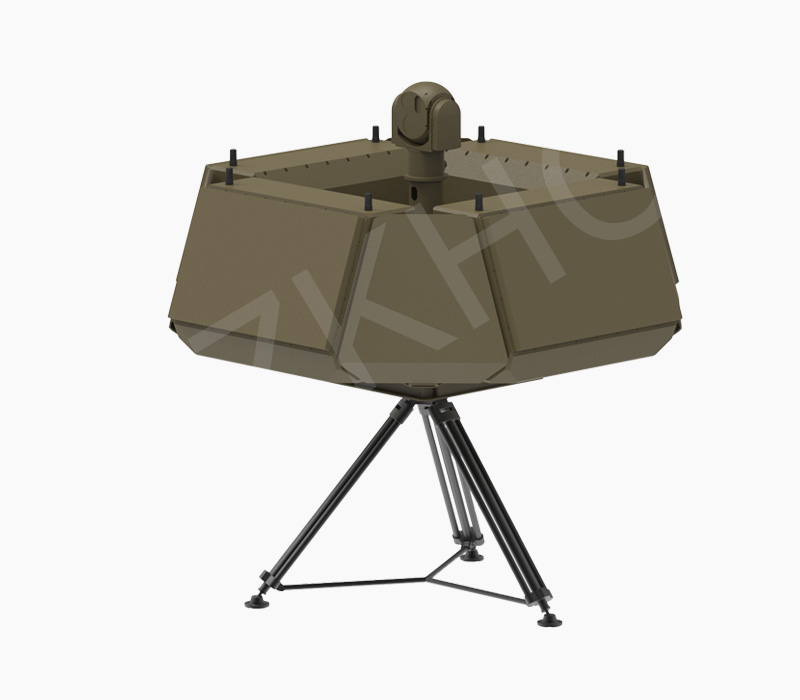

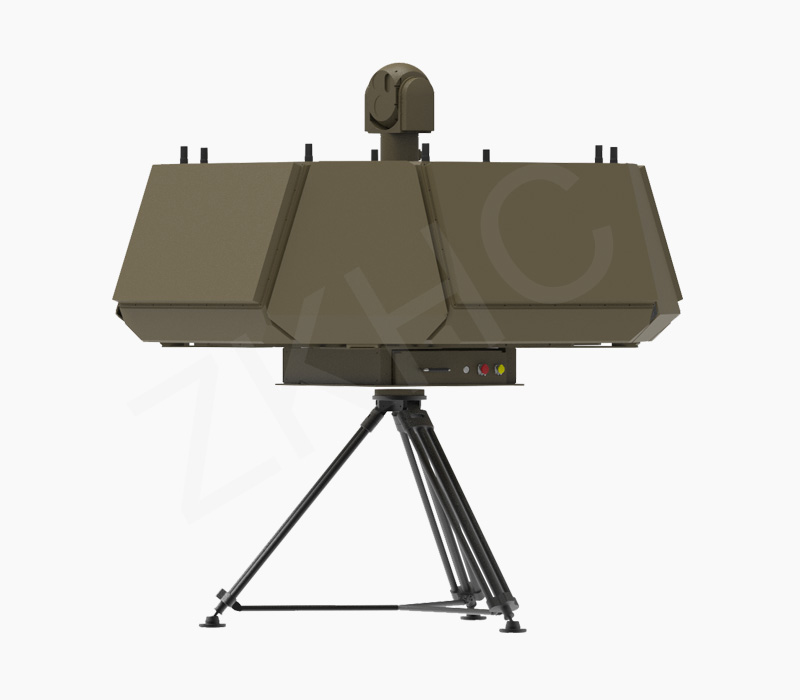

Four-sided array splicing ：and full space-time coverage Seamless four sided array electronic splicing technology provides 360° full coverage in all directions and elevation coverage ≥ 70°, supporting continuous tracking of low altitude ground targets (flight altitude ≤ 50 m). MIMO multitasking mode simultaneously performs search, tracking, and electronic countermeasures, with task switching time ≤ 100 μS and data update rate ≥ 5HZ.
Ultra-low-cost modular design：First "analog-to-digital hybrid multi-channel plug-in array" design, integrated single-board module, reducing costs by 60% compared to traditional phased arrays. The online real-time channel correction technology based on the whole array correction network is used to achieve high channel consistency.
Product Parameters
Common uses
Inshore waters, docks and aquaculture zones are high-risk for smuggling and theft.
Complex marine environment and wide coverage make traditional monitoring and patrols ineffective at night, with limited range, blind spots and slow response, failing to stop small covert vessels’ illegal activities.

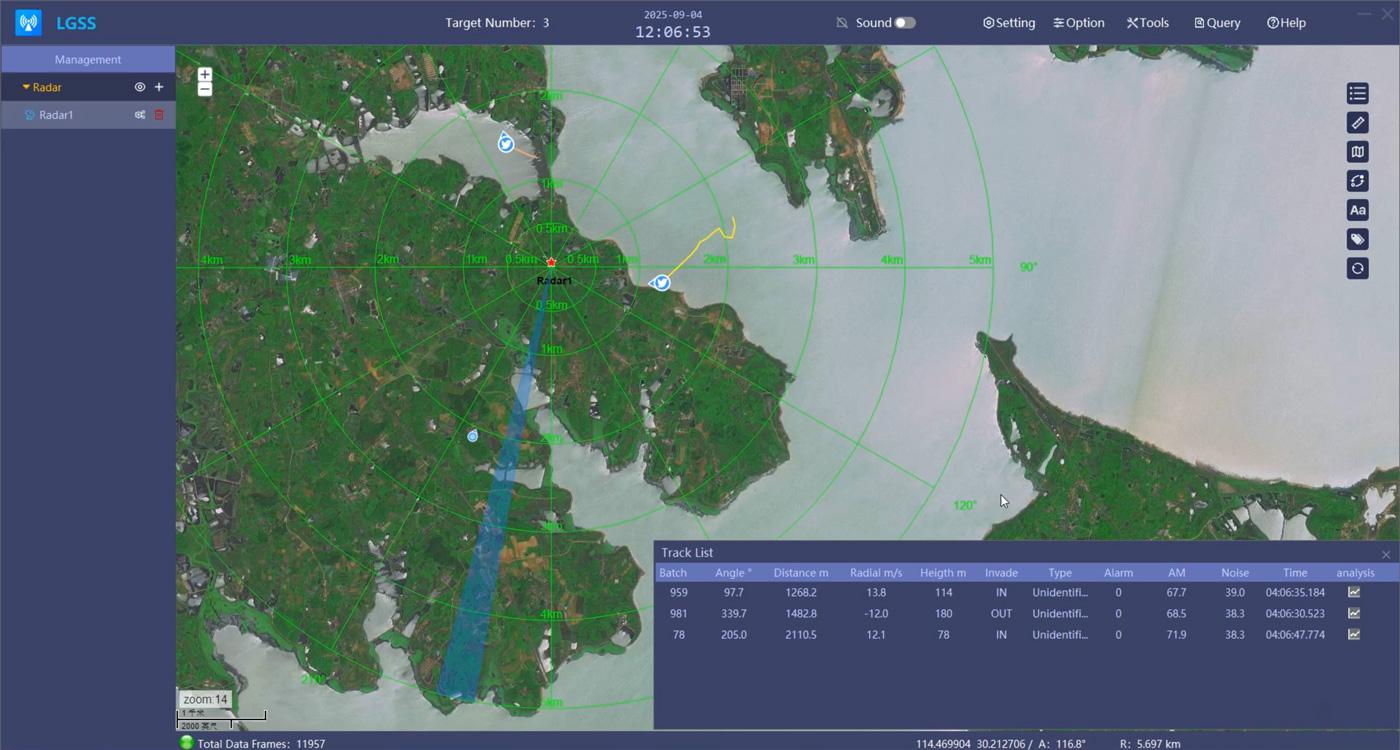

Multidimensional Detection: Covers UAVs (up to 5km), birds and small aircraft, enabling target classification and trajectory prediction.
All-Weather Operation: Performs reliably in rain, fog, darkness and sandstorms, stably tracking highly maneuverable targets with industry-leading low false-alarm rate.
Rapid Response: Phased array technology + high refresh rate, achieving second-level detection and alerting to support fast defense decision-making.

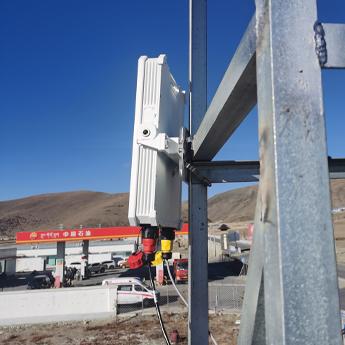

Power grids, oil & gas stations, nuclear power plants, data centers and chemical parks are vital to national economy and people’s livelihood.
Illegal reconnaissance, sabotage and terrorist attacks could cause large-scale shutdowns and public security disasters.
Powered by phased array radar, it replaces traditional security for intelligent perimeter and zone monitoring.
It accurately detects personnel and vehicle intrusions, outputs tracks and speed automatically, and integrates with access control and cameras.
Full automation of warning – forensics – response improves security efficiency and safety.
Coastal waters cover inshore zones, ports, coastal defense areas, aquaculture, berths, warehouses and critical water facilities. As a key frontline for border, public and asset security, they feature wide coverage, harsh environments and concealed violations, representing a weak link in security defense.
Multidimensional Detection: Covers UAVs (up to 5km), birds and small aircraft, enabling target classification and trajectory prediction.
All-Weather Operation: Performs reliably in rain, fog, darkness and sandstorms, stably tracking highly maneuverable targets with industry-leading low false-alarm rate.
Rapid Response: Phased array technology + high refresh rate, achieving second-level detection and alerting to support fast defense decision-making.
Intrusion into the clear airspace may cause flight delays, diversions, go-arounds, and even mid-air collisions, constituting a Level 1 risk source for civil aviation safety. Clear airspace control and prevention are mandatory by policy; failure to adopt effective measures will result in major liability.
Multidimensional Detection: Covers UAVs (up to 5km), birds and small aircraft, enabling target classification and trajectory prediction.
All-Weather Operation: Performs reliably in rain, fog, darkness and sandstorms, stably tracking highly maneuverable targets with industry-leading low false-alarm rate.
Rapid Response: Phased array technology + high refresh rate, achieving second-level detection and alerting to support fast defense decision-making.
